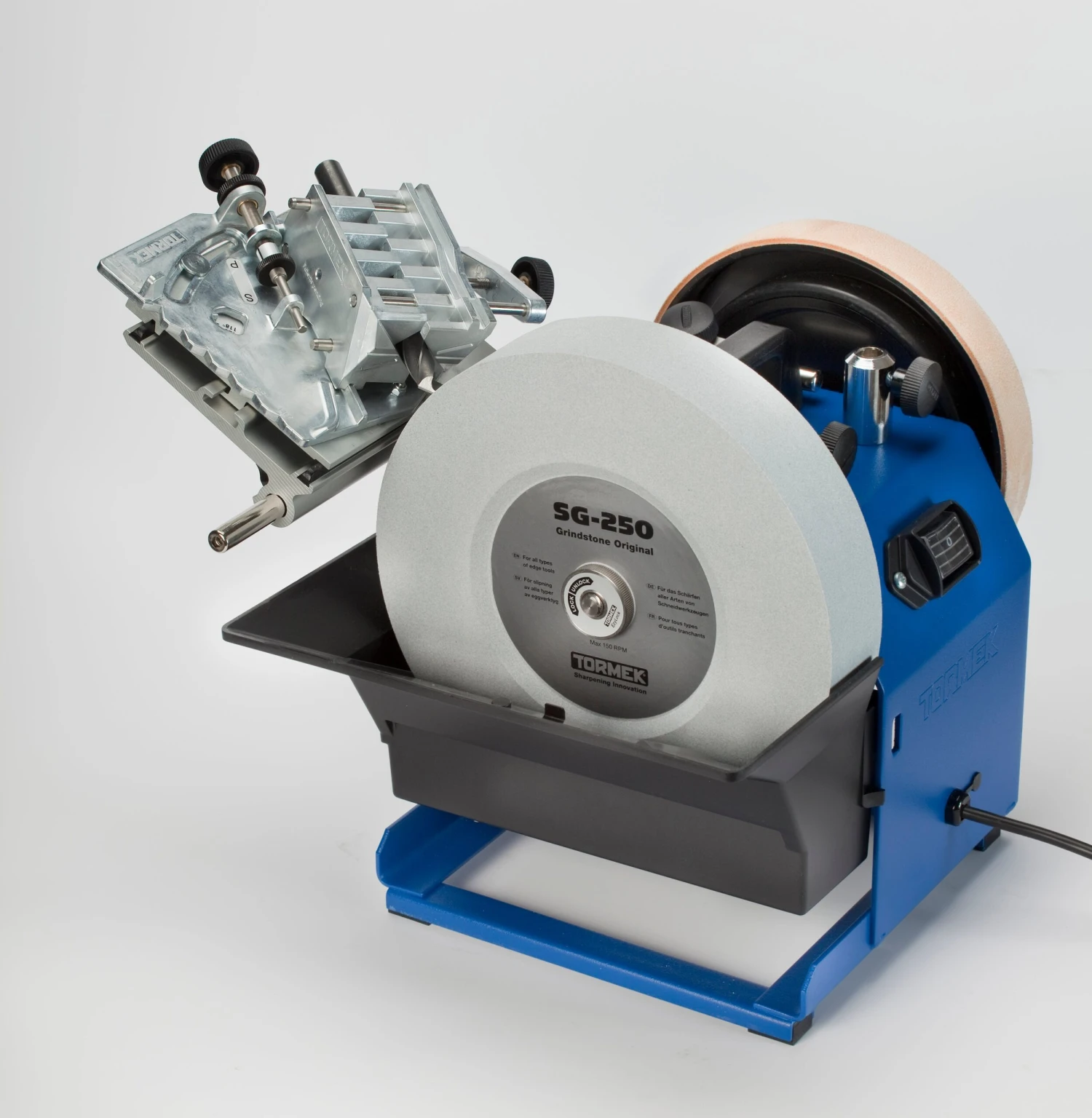

Tormek Drill Bit Sharpening Attachment

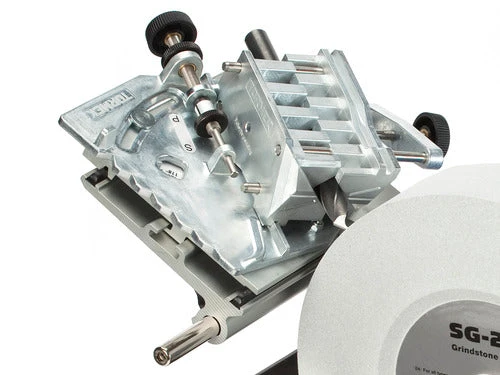

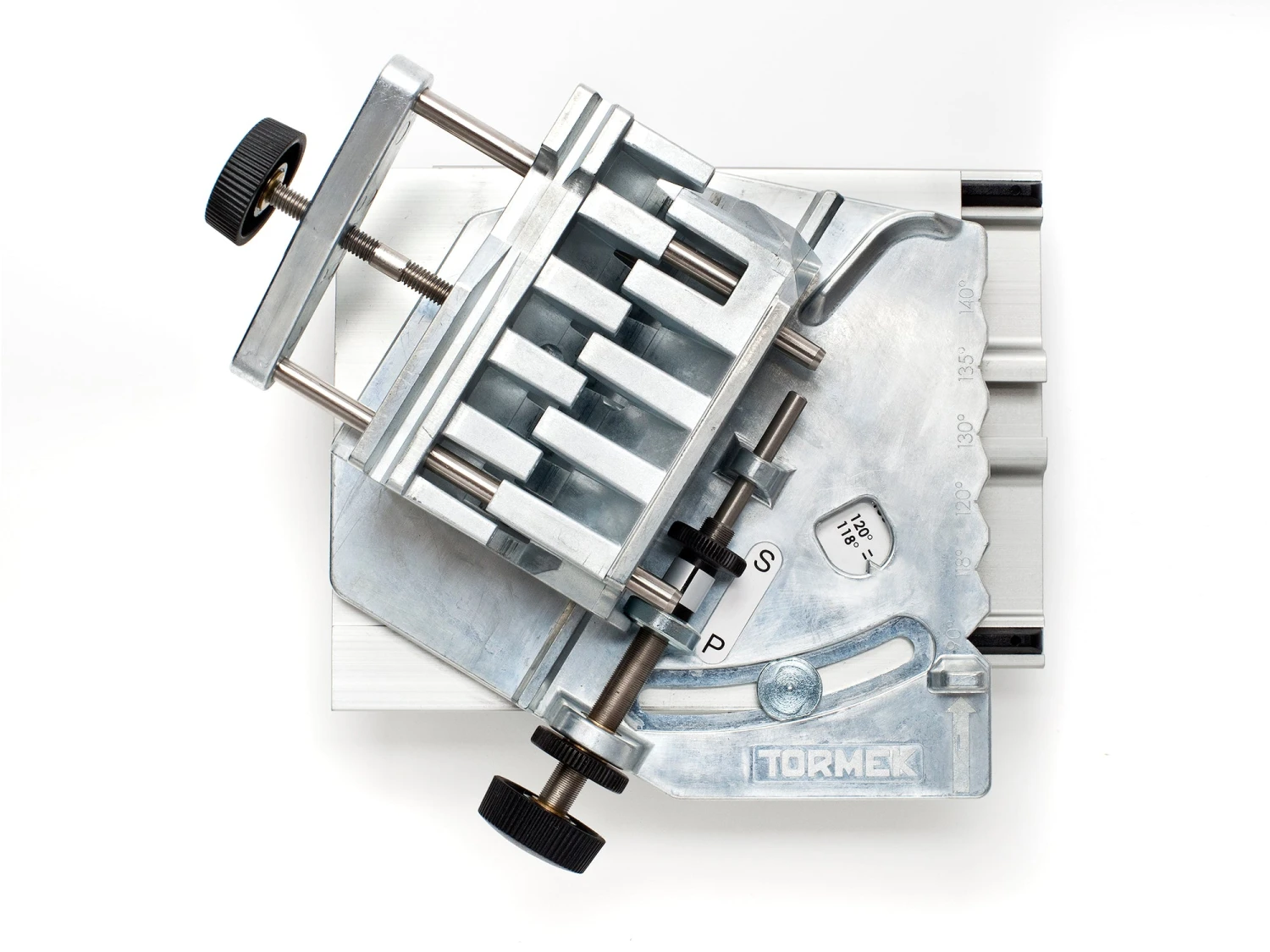

With the Tormek patented attachment for drill bits DBS-22, you can now sharpen your drill bits with the highest precision. The optimal point and clearance angles can be set according to each drilling requirement, which depends upon the drill size and material. You can completely restore worn drills as well as broken drills to a perfect shape.

Product Specs

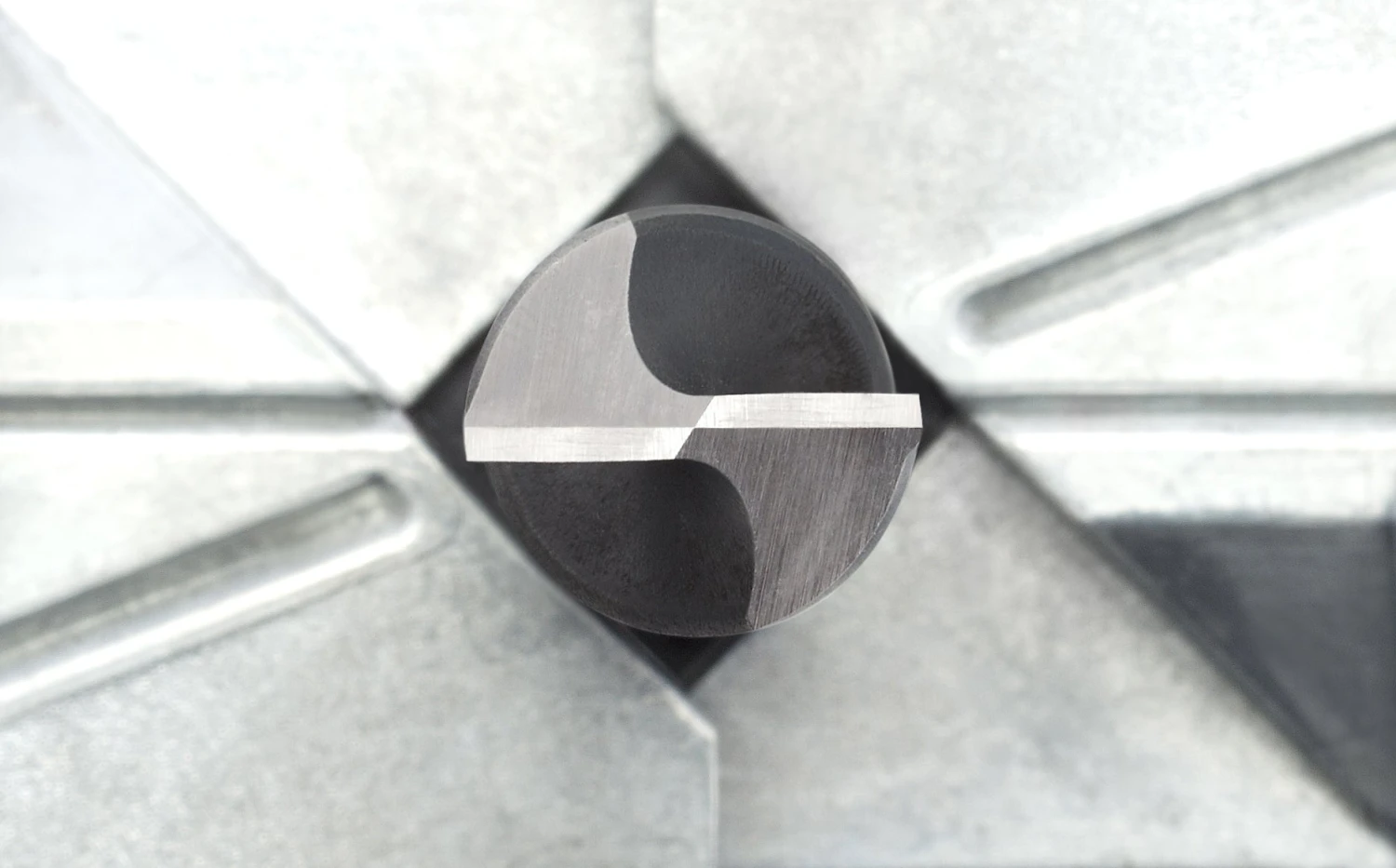

Create a 4-facet point which gives the ideal cutting performance since the chisel edge gets a point instead of being almost flat as on many drills. A 4-facet point will not walk, and the thrust force required is considerably reduced compared to a conventional cone point drill.

A precision sharpened 4-facet point generates less heat and the life of the drill is therefore also prolonged. Independent tests show that a Tormek sharpened drill lasts up to 4 times longer than a brand new conventional drill bit.

By working with the laws of physics and cooling the edge continuously, the risk that the steel becomes overheated and loses its hardness or gets micro cracks is eliminated. You have full control all the time and can see how the sharpening proceeds.
